Electronic Rubber Testing Machine , 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Tester

Name: Electronic Rubber Testing Machine 25N 02N 5 N 02N DIN Abrasion Tester
Brand: HAIDA
Price: 1 USD

Wholesale Electronic Rubber Testing Machine , 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Tester from china suppliers

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-P307

Power : Electronic

Port : ShenZhen

MOQ : 1 Set

Price : Negotiable

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Product : rubber testing equipment

reference standard : DIN-53516﹑ISO/DIS-4649﹑BS903 PART9 and GB-9867

Sample load : 2.5N ±0.2N / 5 N ±0.2N

Roller wheel diameter : Φ(150 ±0.2)mm

Roller wheel length : 460mm

Contact Now

Electronic Rubber Testing Machine , 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Tester

Brief introduction

1. Product description:

Rubber DIN Abrasion Test Machine is used to test abrasion resistance of elastic material, rubber, tire, conveyor belt, solo, soft synthetic leather and other materials.

2. Principle

Under specified touched pressure and given area, when the sample and the abrasive paper get an angle, testthe abrasion resistance of the sample on the abrasive paper with certain rank.Wrap the abrasive paper on theroller. The sample adpress on the roller with abrasive paper to make the sample move horizontally along withthe roller. Abrasion is produced on the one end of the cylinder sample. Measure the loss value of the sample and calculate the abrasion resistance according to sample density.

3. Design criteria

The instrument reference standard: DIN-53516﹑ISO/DIS-4649﹑BS903 PART9 and GB-9867.

4. Main technical parameters

Sample load	2.5N ±0.2N / 5 N ±0.2N
Roller wheel diameter	Φ(150 ±0.2)mm
Roller wheel length	460mm
Roller wheel revolving speed	40±1r.p.m
Abrasion stroke	40m equal to roller wheel turns number 84
Abrasion speed	0.32m/sec
Dip angle	3°(included angle between sample clamp holder and vertical plane of roller wheel)
Volume (approx.)	70cm ×30cm ×30cm
Weight (approx.)	50kg
Power	1∮ AC 220V 3A(specified)

Electronic Rubber Testing Machine , 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Tester

Product Tags:

rubber tensile testing machine

rubber hardness tester

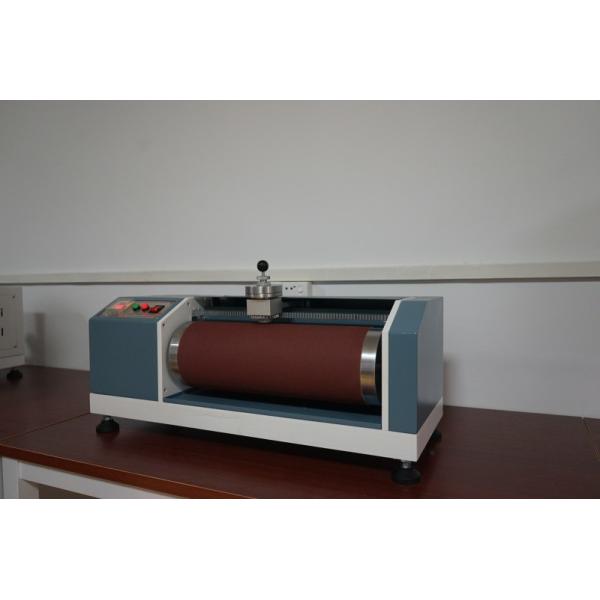

Electronic Rubber Testing Machine , 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Tester Images
